Products Description
PRODUCT DETAILS：
|
Product Name |
LVL Laminated Module |
|
Material |
New Zealand radiata pine, Russian larch, etc. |
|
Length |
Up to 8.5 meters long Customized |
|
Width |
90mm to 400mm Customized |
|
Thickness |
35mm to 75mm Customized |
|
Surface treatment |
Double-sided polishing / Anti-slip treatment, Customized Support |
|
Certification Standards |
Complies with Australian and New Zealand Standards AS/NZS 4357.0. |
|
Formaldehyde Emission |
Poplar products use E0 glue, while the rest use phenolic resin glue. |
|
Design Style |
Modern |
|
Feature |
water resistant, Anti-Corrosion, Eco-Friendly |
Application Scenarios of Building Load-Bearing Keel
Suitable for vertical load-bearing keels of partition walls, supporting the load of wall plastering, decorative panels, and insulation layers, reducing wall sagging and lateral bending
Can be used as a load-bearing framework for suspended ceilings, supporting the weight of gypsum board and insulation cotton, reducing the risk of ceiling sagging and cracking;
Suitable for large-scale residential and commercial projects, with stable dimensional tolerances, allowing for direct cutting upon arrival, reducing material handling and labor costs.
Core Performance Advantages
The core highlights of this LVL load-bearing keel are its high strength and excellent stability. It also supports extra-long customization, has low cutting waste, and is environmentally friendly and safe for indoor projects.
High Load-Bearing Capacity
The veneer is laminated along the grain, resulting in a load-bearing capacity higher than solid wood of the same specifications. The stress is evenly distributed, reducing the likelihood of localized breakage.
Excellent Stability
High-temperature hot-pressing ensures uniform moisture content control, reducing bending, cracking, and twisting problems caused by shrinkage and expansion.
Flexible Specifications
Supports extra-long, wide, and thick customization. It can be cut to the dimensions of the project keel, reducing splicing points and improving the overall integrity of the frame.
High Utilization Rate
The board has fewer knots and defects, resulting in significantly lower cutting waste than natural solid wood, reducing project material costs.

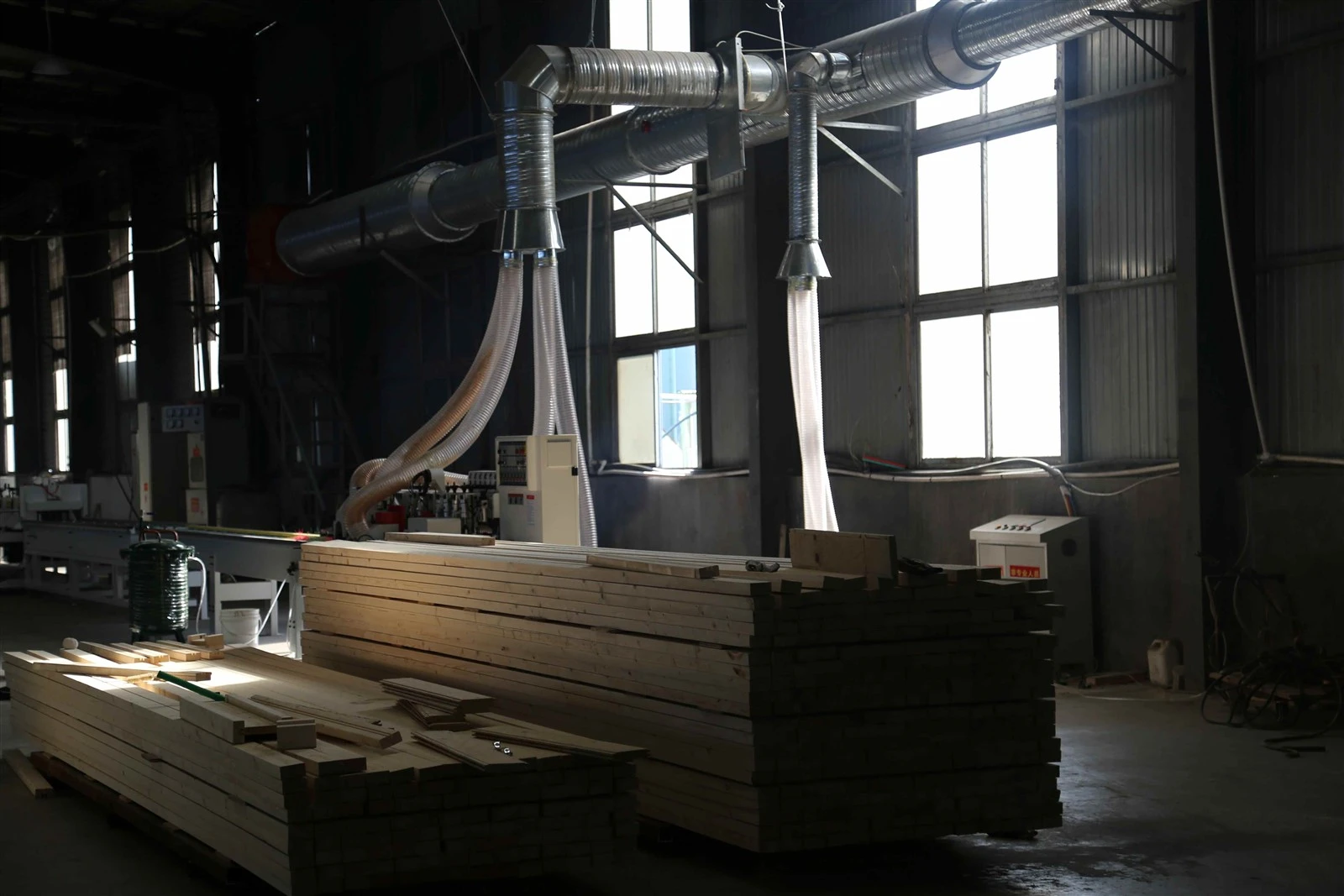

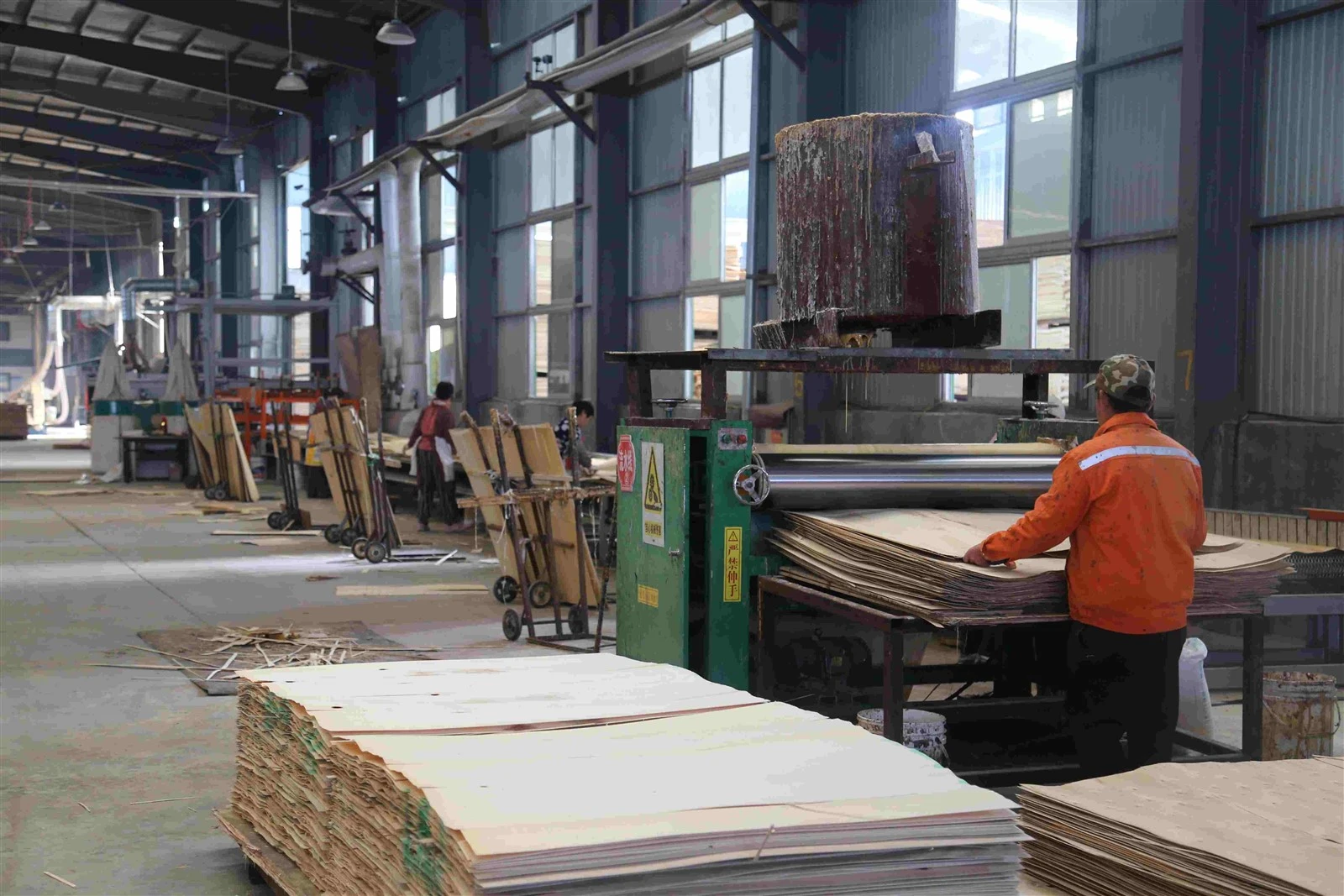

Detailed Production Process
The entire production process revolves around three core elements: "aligned fiber direction + high temperature and high pressure + stress release." From veneer drying to finished product inspection, each step is carefully controlled to ensure stable load-bearing performance.
Veneer Drying
High-quality poplar rotary-cut veneers are fed into a drying kiln, with precise control of the veneer moisture content to the standard range;
Hot Pressing and Bonding
The veneers are arranged along the fiber direction, coated with environmentally friendly waterproof adhesive, and fully cured and bonded under high temperature and high pressure;
Stress Curing
After hot pressing, the veneers are placed at a constant temperature to eliminate internal stress and reduce the risk of future deformation;
Inspection and Sorting
The veneers are cut to length, sanded, and each piece is inspected for straightness and bonding quality, rejecting substandard products.
Customizable Specifications
The product offers a wide range of adjustable thickness, width, and length, and supports advanced processing, adapting to the size requirements of most construction site framing systems.
- Thickness range: 15-80mm; Width range: 40-200mm;
- Length options: 1-6 meters (extra-long), reducing on-site splicing;
- Advanced processing options include sanding, chamfering, and edge trimming; custom cutting to size according to drawings is also available.
Applicable Industries and Projects
Suitable for various indoor building framing projects, covering residential decoration, hotels, factories, public buildings, and other engineering scenarios.
- Residential interior partition walls, hotel and office partition walls;
- Ceiling framing for factories and workshops, load-bearing materials for prefabricated building interior walls;
- Framing systems for public buildings such as schools and hospitals, and bulk real estate developments.
FAQ
Q. If your company is reliable ?
A: Founded in 2009,company covers an area of 52,000 square meters,more than 300 employees, including nearly 20 scientific researchers.Powerful LVL manufacture in China.
Q.How long is your delivery time?
A: For full container, factory lead time About 20~35 days.
Q: what's your payment terms and trade terms?
A: Accepted Delivery Terms: FOB, CFR, CIF, CIP, FCA, CPT, Express Delivery, DAF.
Q: How can you promise quality
A: It complies with the Australian and New Zealand standards AS/NZS 4357.0. Some products have passed JAS-ANZ certification, and the formaldehyde emission level reaches E0 level certification, FSC certification can also be provided.
Q:How about the shipping fees?
A: For large quantities of products, ocean freight is usually the best option. The price of ocean freight depends on the destination port and the current ocean freight rates. Please contact us and we will provide you with a better quote based on the actual situation.
