Products Description

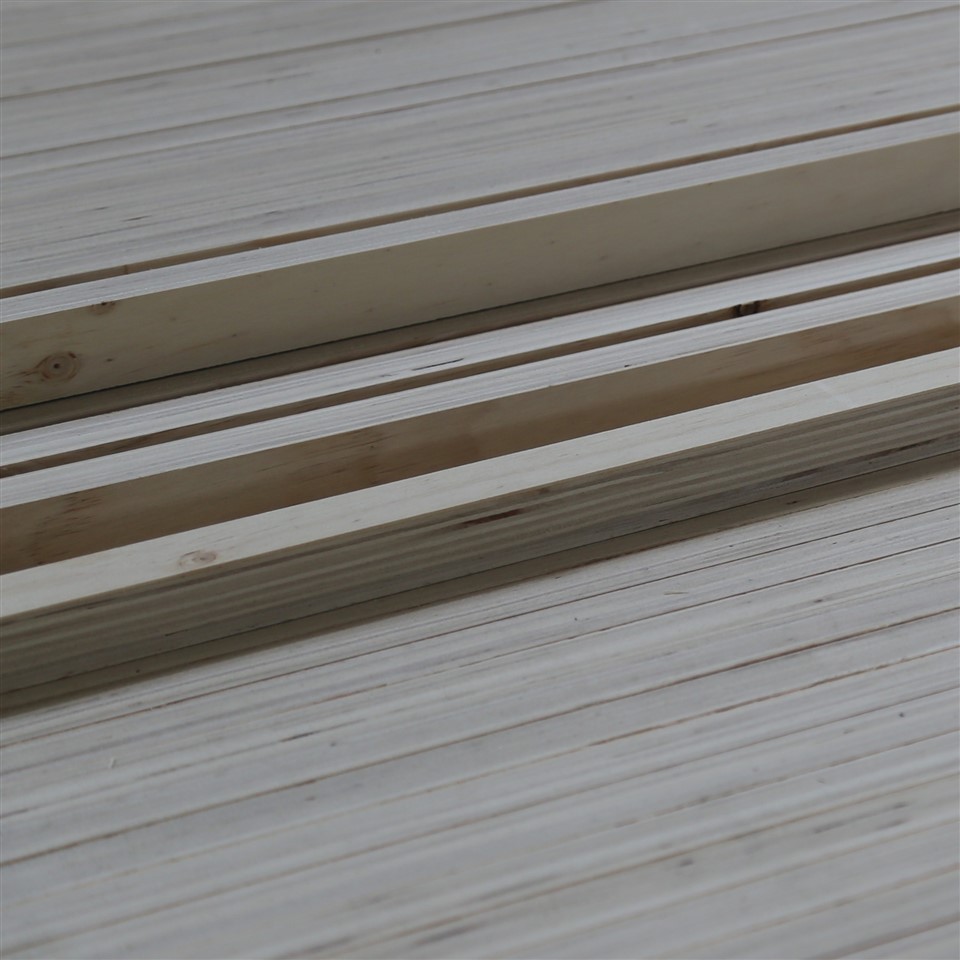

This product is a square-section column specifically designed for the vertical load-bearing and decorative structural needs of buildings. Its uniform appearance and reliable structural performance make it suitable for outdoor support of porches and balconies, as well as for interior lofts and attics, or as a decorative structural element in commercial spaces. We offer a variety of surface finishes, from practical to slightly aesthetically pleasing.
PRODUCT DETAILS：
|
Product Name |
Square cross-section LVL load-bearing column |
|
Material |
New Zealand radiata pine, Russian larch, etc. |
|
Length |
Up to 8.5 meters long Customized |
|
Width |
90mm to 400mm Customized |
|
Thickness |
35mm to 75mm Customized |
|
Surface treatment |
Double-sided polishing / Anti-slip treatment, Customized Support |
|
Certification Standards |
Complies with Australian and New Zealand Standards AS/NZS 4357.0. |
|
Formaldehyde Emission |
E0 |
|
Design Style |
Modern |
|
Feature |
water resistant, Anti-Corrosion, Eco-Friendly |
Product Specifications and Surface Options
We offer a simple and clear selection:
Standard Sections
Primarily square, such as 90x90mm, 120x120mm, 150x150mm, 200x200mm. A limited number of rectangular sections (e.g., 120x180mm) are also available to meet special design requirements.
Standard Lengths
2.4m, 3.0m, 3.6m (8', 10', 12'). Custom lengths are available based on ceiling height, but on-site cutting allowance is recommended.
Surface Finish Grades
Industrial Grade: Sanded on all four sides, but allows for minor healthy knots and slight color variations, suitable for subsequent wrapping or painting. The most economical choice.
Appearance Grade: Selected veneer, finely sanded on all four sides, with relatively uniform color and texture, suitable for applications requiring exposed display. Higher price.
tructural Performance and Corrosion Protection
We guarantee the structural reliability of the foundation:
Foundation Treatment: All products are kiln-dried to meet transportation moisture content standards.
Pressure Treatment (Optional): Customers can choose additional pressure treatment for corrosion and insect protection (such as using ACQ or CuAz agents) to achieve UC3 (outdoor, not in contact with ground) or UC4A (in contact with ground) ratings, at an additional cost. The treated product will turn green.
Connection Design and Installation Recommendations
End Plate Connections
We offer the option of pre-embedded steel plates. A steel plate with bolt holes is precisely embedded into the column end at the factory, allowing for direct bolting to the foundation or beam on-site-a very secure and convenient solution.
Side Connections
The flat sides facilitate connection to adjacent beams or walls using heavy-duty brackets or bolts.
Guideline Provided
We include a simple multilingual diagram illustrating several common foundation and column top connection methods.
Export Packaging and Quality Assurance
Protection is especially important for columnar products:
Comprehensive Corner Protection
All eight corners of each column are wrapped with thickened paper or plastic corner protectors and secured with tape.
Waterproof Bundling
Multiple columns are placed side-by-side and tightly wrapped together with a waterproof membrane, then reinforced with steel straps to form a sturdy transport unit, effectively preventing bending and impact.
Quality Commitment
We guarantee that the product, when arrived under proper packaging and transportation, will not have cracks, severe bending, or decay that would affect its structural use. Minor surface wear during transportation (which can be repaired after sanding) is not covered under warranty.
FAQ
Q: If your company is reliable ?
A: Founded in 2009,company covers an area of 52,000 square meters,more than 300 employees, including nearly 20 scientific researchers.Powerful LVL manufacture in China.
Q: .How long is your delivery time?
A: For full container, factory lead time About 20~35 days.
Q: what's your payment terms and trade terms?
A: Accepted Delivery Terms: FOB, CFR, CIF, CIP, FCA, CPT, Express Delivery, DAF.
Q: How can you promise quality
A: It complies with the Australian and New Zealand standards AS/NZS 4357.0. Some products have passed JAS-ANZ certification, and the formaldehyde emission level reaches E0 level certification, FSC certification can also be provided.
How about the shipping fees?
For large quantities of products, ocean freight is usually the best option. The price of ocean freight depends on the destination port and the current ocean freight rates. Please contact us and we will provide you with a better quote based on the actual situation.
