Products Description

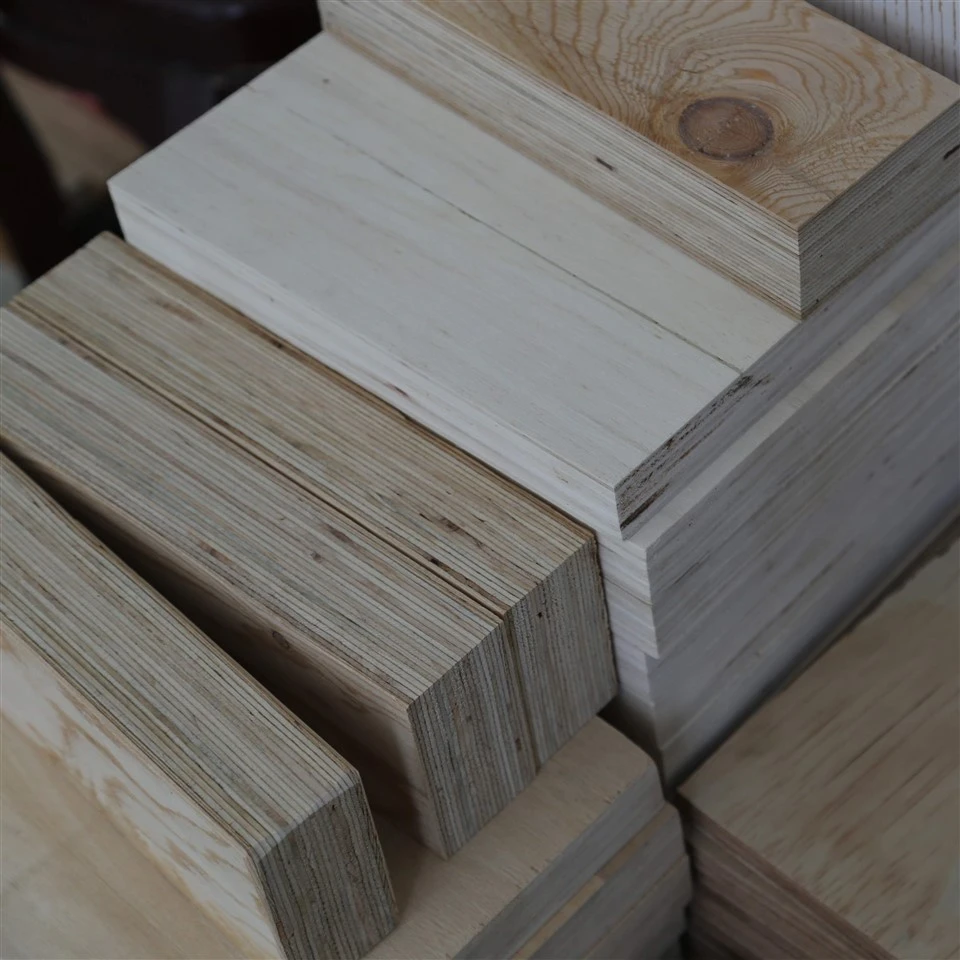

LVL cantilever beams are designed specifically for mechanical limit conditions with single-end fixed supports. Through a gradient reinforcement structure with "stiff at the front and tough at the back" and a prestressed anchorage system at the root, they achieve the optimal ratio of cantilever length to load capacity. Their maximum cantilever ratio (cantilever length/beam height) can reach 4:1, providing stable and reliable structural support in balconies, canopies, grandstands, and other scenarios with a slender form.
PRODUCT DETAILS：
|
Product Name |
LVL cantilever beams |
|
Material |
New Zealand radiata pine, Russian larch, etc. |
|
Length |
Up to 8.5 meters long Customized |
|
Width |
90mm to 400mm Customized |
|
Thickness |
35mm to 75mm Customized |
|
Surface treatment |
Double-sided polishing / Anti-slip treatment, Customized Support |
|
Certification Standards |
Complies with Australian and New Zealand Standards AS/NZS 4357.0. |
|
Formaldehyde Emission |
Poplar products use E0 glue, while the rest use phenolic resin glue. |
|
Design Style |
Modern |
|
Feature |
water resistant, Anti-Corrosion, Eco-Friendly |
"Rigid at the Front, Tough at the Back" Composite Structure
Rigid Core of the Cantilever Section
The front end uses a densely layered high-modulus veneer to ensure minimal deflection under load and maintain end flatness.
Tough Transition Zone at the Root
The fixed-end area incorporates high-toughness veneer and fiber reinforcement layers, acting like a "spring base" to absorb bending moments and prevent brittle failure.
Prestressed Metal Anchor System
High-strength tension bolts are pre-embedded in the factory, applying prestress during installation to actively offset some of the tensile stress under service loads.
Defining the "Floating" Language of Modern Architecture
Residential Aesthetics
Villa viewing balconies, sunshades overhanging on glass curtain walls, column-free entrance canopies.
Public
Buildings
Stadium grandstand roofs, cantilevered roofs of bus stops and corridors, open-air connecting corridors on campuses.
Commercial
Spaces
Deep eaves of shop signs, covered walkways in commercial districts, extended sections of viewing platforms.
Creative
Structures
Supporting arms of large-scale outdoor art installations, cantilevered platforms of treehouses, flying eaves of landscape pavilions.
FAQ
Q: If your company is reliable ?
A: Founded in 2009,company covers an area of 52,000 square meters,more than 300 employees, including nearly 20 scientific researchers.Powerful LVL manufacture in China.
Q: .How long is your delivery time?
A: For full container, factory lead time About 20~35 days.
Q: what's your payment terms and trade terms?
A: Accepted Delivery Terms: FOB, CFR, CIF, CIP, FCA, CPT, Express Delivery, DAF.
Q: How can you promise quality
A: It complies with the Australian and New Zealand standards AS/NZS 4357.0. Some products have passed JAS-ANZ certification, and the formaldehyde emission level reaches E0 level certification, FSC certification can also be provided.
How about the shipping fees?
For large quantities of products, ocean freight is usually the best option. The price of ocean freight depends on the destination port and the current ocean freight rates. Please contact us and we will provide you with a better quote based on the actual situation.
